3
ADJUSTING THE ANGLE OF THE BACK
(FIGURE 4).
NOTE: The adjustable angle growth bracket is infinitely
angle adjustable. The back-to-seat angle is set by the
location of the mounting points for the back in relation to
the base and by changing the hole positions of the ad-
justable angle back hooks.
1. Remove the two (2) attaching screws and nuts on
the adjustable angle back hooks.
2. Recline the back to the desired angle.
3. Align one (1) round hole and one (1) slotted hole on
the back L-bracket with two (2) of the holes on the
hook portion.
4. Reinstall the two (2) screws and nuts and securely
tighten.
5. If more adjustment is needed, the adjustment screws
can be completely removed, and the bracket set to
a NEW T-nutted hole location. Refer to the
FIGURE 2 - ATTACHMENT POINTS
in this instruc-
tion sheet for optional attachment points.
6. Zip center panel of back cover closed.
ADJUSTING THE ULTI-MATE BASE
DEPTH.
1. If necessary, unzip center panel of the back cover.
2. Loosen the four (4) mounting screws that secure
the growth bracket to the Ulti-Mate Base.
3. Adjust the seat forward or back until the desired
mounting position is obtained.
4. Securely tighten the two (2) mounting screws.
5. If more adjustment is needed, the adjustment screws
can be completely removed, and the bracket set to
a NEW T-nutted hole location. Refer to the
FIGURE 2 - ATTACHMENT POINTS
in this instruc-
tion sheet for optional attachment points.
6. Zip center panel of back cover closed.

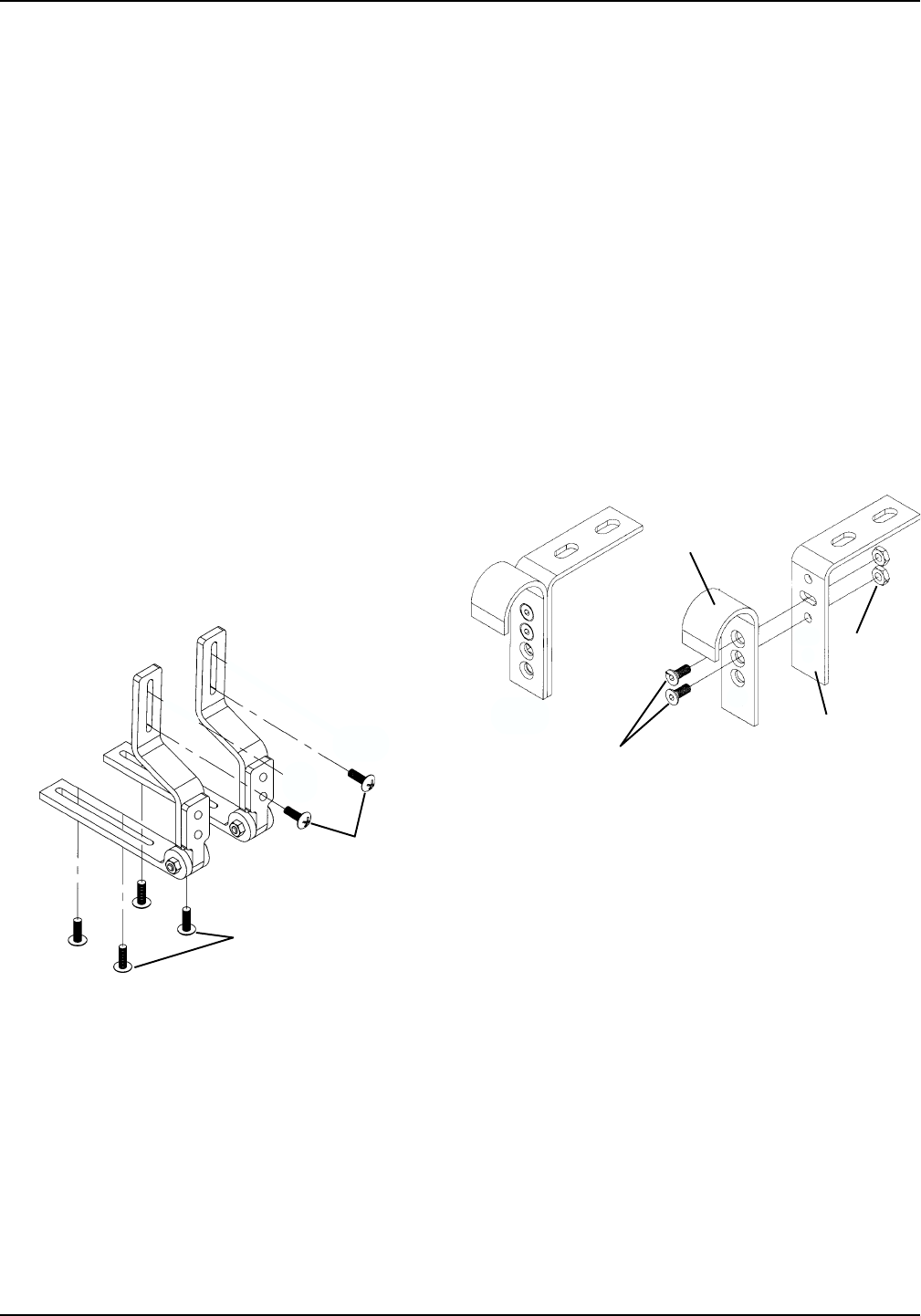

FIGURE 3 - ATTACHING / ADJUSTING THE
ADJUSTABLE ANGLE GROWTH
BRACKET
FIGURE 4 - ADJUSTING THE ANGLE OF
THE BACK
Bottom Mounting
Screws
Top Mounting
Screws
Attaching Screws
Nuts
L-Bracket
Hook Portion
