5
ASSEMBLY INSTRUCTIONS

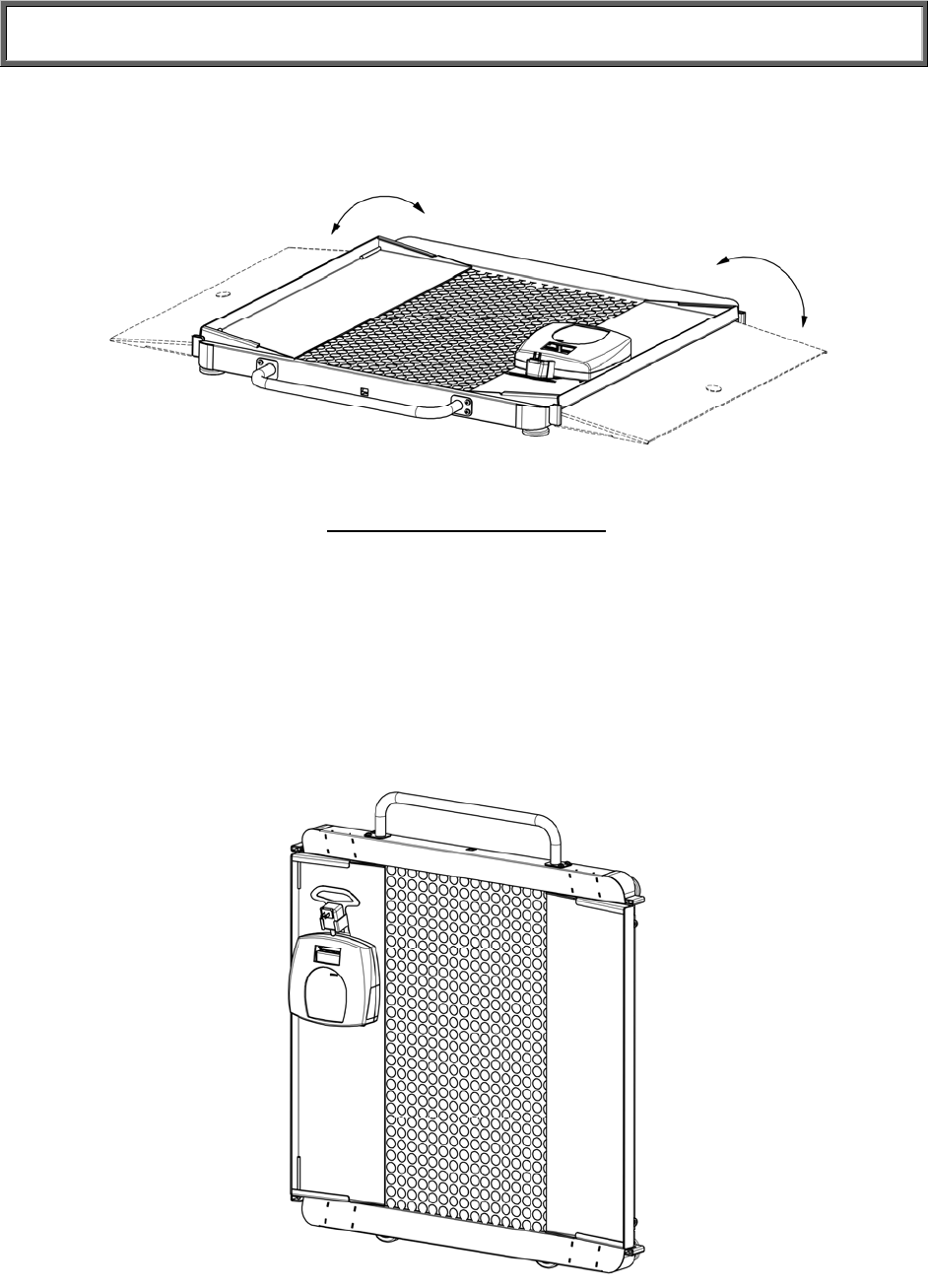

Figure 3. Folding the Ramp
1. Both ramps (left and right) can fold onto the platform.
2. The indicator is mounted onto one of the folded ramps by sliding the slots in the back of
the indicator into raised pins..
3. Lift the scale platform onto its side using the handle, and it is now able to be transported
on two wheels see Figure 4.
Figure 4. Folded Ramp
