Drive Trapeze Bar
Item # 13009SV

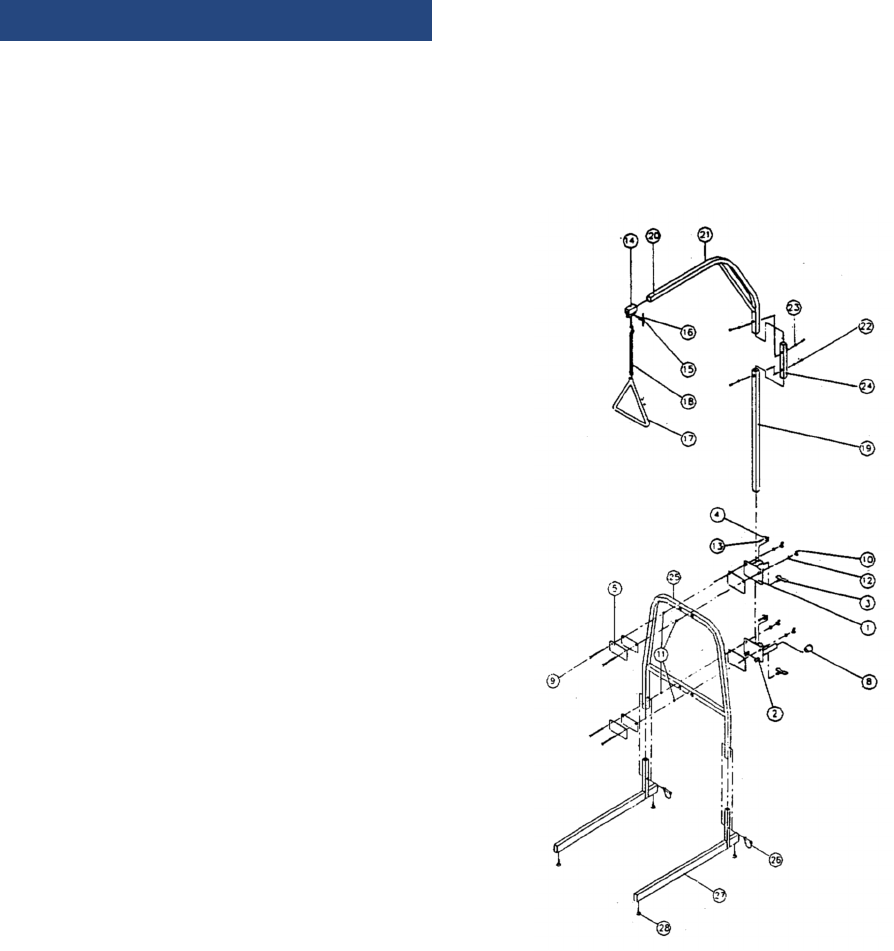

1. Slide bracket (14) over arm (21)
a. NOTE: Do not remove screw from arm
(20)
2. Set slide bracket to the desired position by
tightening bolt (16).
3. Hook the chain (18) to the triangle (17).
4. Hook the unattached side of the chain to the
slide bracket (14).
5. Install Clamps to either bed headboard or
Trapeze Base. Tighten firmly.
6. Slide Trapeze arm (21) and Trapeze post (19)
over connector tube (24) and tighten with
bolts (22).
7. Insert assembled, Overhead Trapeze (19 & 21)
into receiving clamps.
8. Set height and tighten as necessary.
Drive Trapeze Base
Item # 13017SV
1. Remove A-Frame (part # 25 from box and
insert leg extensions (part # 27) into
“A” shape frame.
2. Secure with spring clips (part # 26).
3. To attach Overhead to base, install assem
bled receiving clamps to horizontal “A” shape
frame section. Tighten clamps firmly.
IMPORTANT
Prior to patient use, be sure to tighten
trapeze clamps onto either bed or Trapeze base.
assembly instructions
The Trapeze , used in conjunction with a bed,
can assist an individual weighing up to 450lbs
(204kg). The Trapeze is designed to provide sup-
port, increase stability and assist the user when
repositioning himself/herself in bed. The Trapeze
is not designed, however, to support the total body
weight of an individual. Use it for assistance only.
