WARNING!
Read and understand all instructions. Failure to follow all instructions
listed below may result in electric shock, fire and/or serious injury.
WARNING:
Use of controls or adjustments or performance other than those
specified herein may result in hazardous radiation exposure.
LASER RADIATION : AVOID DIRECT EYE EXPOSURE
RAYONNEMENT LASER : ÉVITER LE CONTACT OCULAIRE DIRECT
RADIACIÓN LÁSER: EVITE LA EXPOSICIÓN DIRECTA DE LOS OJOS
MAXIMUM OUTPUT: <1.0 mW • WAVELENGTH : 630-660nm • CLASS II LAS ER PRODUCT
PUISSANCE MAX. : <1.0 mW • LONGUEUR D’ONDE : 650nm • PRODUIT LA SER DE CLASSE II
POTENCIA MÁX. <1.0 mW • LONG. ONDA: 650nm • APARATO LÁSER CLASE II
DANGER • DANGER • PELIGRO
E49IR01
Made in China Fabriqué en Chine Fabricado en China
Complies with CFR 1040.10
& 1040.11
Avoid Exposure. Radiation is emitted from this aperture.
Éviter toute exposition. Le rayonnement est émis de cette ouverture.
Evite la exposición. Se emite radiación a través de esta abertura.
Complies with / Convient aux pièces / Cumple con partes 21 CFR parts 1040.10 & 1040.11
Avoid direct eye exposure when using the laser and do not project
the laser beam directly into the eyes of others. Serious eye injury
could result.
Do not remove or deface any prod uct labels. Removing product
labels increases the risk of exposure to laser radiation.
Do not place the instrument in a position that may cause anyone
to stare into the laser beam intentionally or unintention ally. Serious
eye injury could result.
Do not operate the laser around children or allow children to oper-
ate the tool. Serious eye injury could result.
Do not use for medical evaluations or to measure body temperature.
This product is meant for household use only.
Do not use this product as a precision thermometer.
Do not operate the instrument in com bustible areas such as in the
presence of flammable liquids, gasses, or dust.
Always ensure the laser beam is aimed at a surface without re-
flective proper ties. Shiny reflective materials are not suitable for laser
use.
The laser shall be used and maintained in accordance with the
manufacturer’s instructions.
Neveraimthebeamatapersonorobjectotherthanthetarget
surface.
This product should not be used without the battery cap in-
stalled.
Handle the instrument with care. Treat it as you would any other
optical device such as a camera or binoculars.
Avoid exposing the instrument to shock, continuous vibration, or
extreme hot or cold temperatures. Damage to the product and/or
serious injury to the user could result.

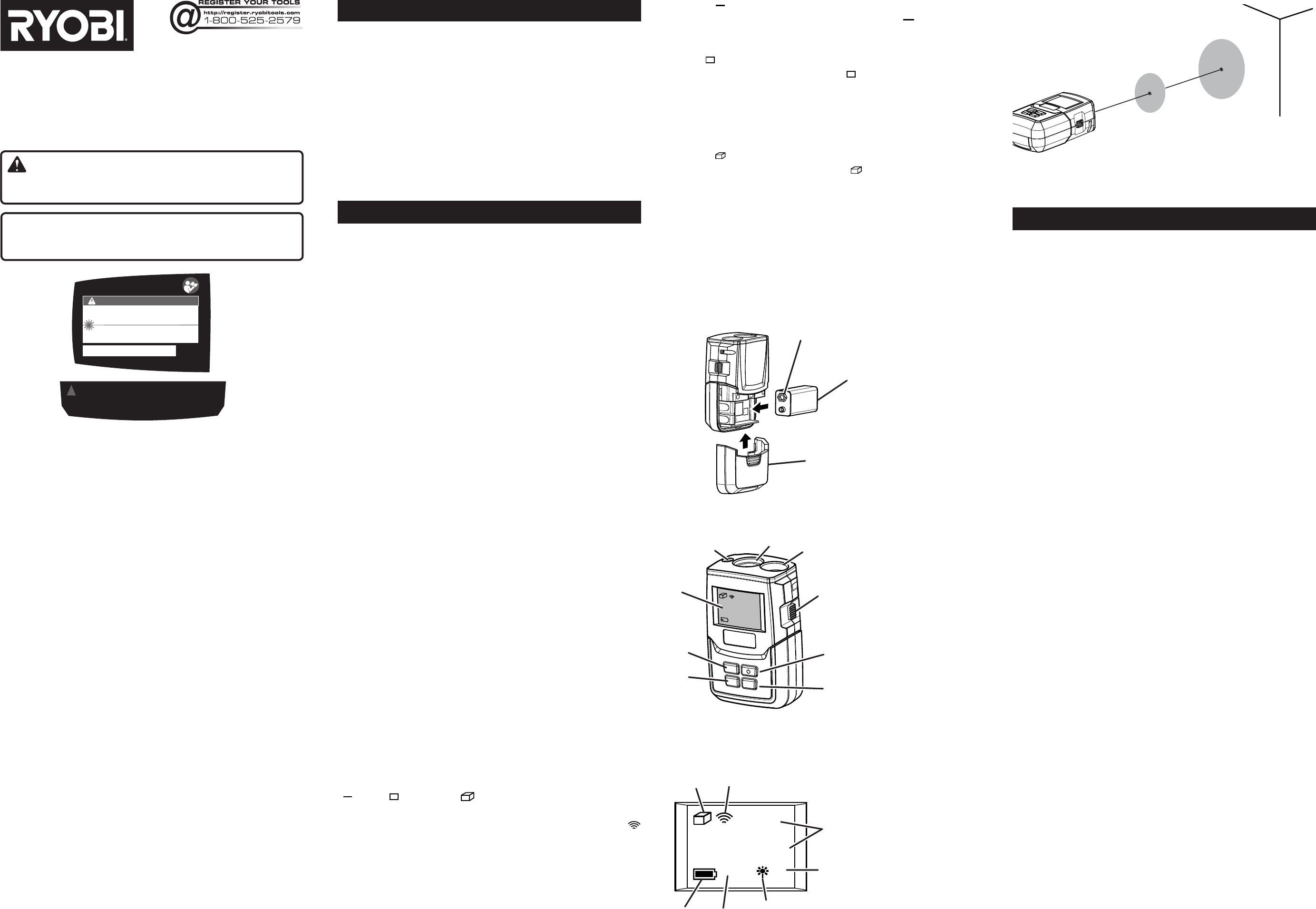

OPERATOR’S MANUAL
3-IN-1 INFRARED THERMOMETER,
SONIC DISTANCE MEASURER,
LASER POINTER
E49IR01
SPECIFICATIONS
Laser Certifications ................................................. <1mW, 630-660 nm
Display Auto Off ....................................................................... 3 minutes
Temperatrue Range ......................................................... -22ºF to 518º F
INFRARED THERMOMETER SPECIFICATIONS:
Accuracy ................................................................-22º F to 30º F ± 5° F
32° F to 518° F± 4° F
Distance to Spot Ratio ...................................................................... 6 : 1
Operating Temperature..................................................... 32º F to 104º F
Temperature Update: ................................................................5 seconds
DISTANCE MEASURER SPECIFICATIONS:
Measurement Range .............................................................. 1 ft to 30 ft
Accuracy of Distance ....................................................... ±0.5% ± 1 digit
OPERATION
The 3-in-1 Infrared Thermometer, Sonic Distance Measure, Laser Point
takes non-contact temperature measurements and distance measure-
ments for electricians, facility maintenance personnel, HVAC applications,
automotive applications, and more.
INSTALLING THE BATTERY
See Figure 1.
A 9 volt battery (included) must be installed before using the unit.
Slide the battery cover off.
Attach the battery terminals to their connectors on the unit.
Close the battery compartment by sliding the cover into place until it
snaps closed.
TAKING TEMPERATURE READINGS
See Figures 2 - 4.
To obtain the most accurate readings, follow these instructions:
Temperature readings can only be measured on a target surface.
Surfaces covered by frost, dirt, or other material should be cleaned
before taking reading.
For highly reflective surfaces, such as mirrors or windows, place a
piece of paper or tape on area where reading will be taken.
To take a temperature reading:
Press Power button (E) to turn on unit.
Press Mode button (F) to set unit to Infrared Mode, shown as IR (M)
on LCD display (I).
Point the unit toward the area you wish to read and press the Measure
button (D). See Figure 4 to determine distance to spot ratio for
accuracy of reading.
NOTE: The Laser pointer (A) will come on whenever Measure button (D)
is pressed. The Laser pointer (A) indicates the center of the circular
area being scanned for reference only.
The unit will take reading (L).
The surface temperature readings (L) are shown in LCD display.
When the Measure button (D) is released, the laser will turn off. The
HOLD (O) icon will stay on until you turn unit off or another reading is
taken.
To switch between Celsius to Fahrenheit units, press the ºC/Fº
(units)
button (H).
The unit will turn off in in 60 seconds if there is no operation or no key
is pressed.
TAKING DISTANCE MEASUREMENTS
See Figures 2 - 3.
To obtain the most accurate readings, follow these instruc-
tions:
The LCD display shows the measurement for distance (L)
from the device to the target surface, with icons for calculations length
( ), area ( ) and volume ( ) (J).
Press Power button (E) to turn on unit.
Press Mode button (F) to set unit to Sonic mode (K), shown as
on LCD display.
Measurements are calculated from the rear of the tool.
To switch back and forth from ft/in. to cm/m, press the
ºC/Fº
(Units) button (H).
Length ( ) Measurement:
Press the Measure button (D) to measure length ( ) (J).
After two seconds the unit will display the result of the length
measurement (F).
Area ( ) Measurement:
Press the ( X/=) button (G) until the ( ) (J) symbol is displayed.
Press the Measure button (D) to take first length measurement.
The unit will display the result of the length measurement.
Reposition unit and take second length measurement.
After two seconds the unit will display the result of the area
measurement.
Volume ( ) Measurement:
Press the ( X/= ) button (G) until the ( ) (J) symbol is displayed.
Press the Measure button (D) to take first length measure ment.
The unit will display the result of the length measurement.
Reposition unit and take second length measurement.
The unit will display the result of the area measurement.
Reposition unit and take third length measurement.
After two seconds the unit will display the result of the volume
measurement.
The unit will turn off in 60 seconds if there are no further operations or
no key is pressed.
Fig. 2
J
L
P
G
E
C
A
I
B
D
F
Fig. 3
H
M
K
N
987000-814
8-31-09 (REV:01)
ONE WORLD TECHNOLOGIES, INC.
1428 Pearman Dairy Road, Anderson, SC 29625
Phone 1-800-525-2579
www.ryobitools.com
Ryobi® is a registered trademark of Ryobi Limited used under license.
LIMITED TWO YEAR WARRANTY AND 30 DAY EXCHANGE POLICY
30-DAY EXCHANGE POLICY: During the first 30 days after date of
purchasing this product, you may either request service under this war-
ranty or you may exchange it by returning it with proof of purchase and
all original equipment packaged with the original product to the dealer
from which it was purchased. The replacement product will be covered
by the limited warranty for the balance of the two year period from the
date of the original purchase.
LIMITED TWO YEAR WARRANTY. This product is warranted against all
defects in workmanship or materials for a period of two years from the date
of purchase. The warranty on any accessories for this product, excluding
batteries, is limited to 90 days from the date the accessory is purchased.
To obtain warranty service, call Customer Service at 1-800-525-2579 for
warranty return instructions. The product must be properly packaged and
returned with all equipment that was included with the original product.
When you request warranty service, you must also present proof of pur-
chase documentation, which includes the date of purchase (for example,
a receipt or a bill of sale). Defective products returned within the warranty
period will be repaired or replaced, at our option, free of charge, within
ninety (90) days or less. The cost of shipping the product to us is your
responsibility. This warranty only covers defects arising under normal us-
age and does not cover any malfunction, failure or defects resulting from
misuse, abuse, neglect, alteration, modification or unauthorized repairs. It
applies only to the original purchaser at retail, and may not be transferred.
One World Technologies, Inc. makes no warranties, representations or
promises as to the quality or performance of this product other than
those specifically stated in this warranty. Any implied warranties granted
under state law, including warranties of merchantability or fitness for a
particular purpose, are limited to two years from the date of purchase.
One World Technologies, Inc. is not responsible for direct, indirect, or
incidental damages Some states do not allow limitations on how long
an implied warranty lasts, or the exclusion or limitation of incidental or
consequential damages, so the above limitations and exclusions may not
apply to you. This warranty gives you specific legal rights, and you may
also have other rights which vary from state to state.
Fig. 4
O
WARRANTY
Fig. 1
A - 9V battery (Pile de 9 V, batería de 9
V)
B - Battery cover (couvercle du compar-
timent de la batterie, tapa de la bat-
ería)
C - Battery terminals (bornes de batterie,
terminales de la batería)
A
B
C
A - Laser beam (faisceau laser , rayo
láser )
B - Sonic beam (faisceau sonique, rayo
sónico)
C - Infrared beam (faisceau à infrarouge,
rayo infrarrojo)
D - Measure button (bouton « measure
» (mesure), botón de medición)
E - Power button (bouton « power »
(marche/arrêt), botón de encendido)
F - Mode button (bouton « mode »
(mode), botón modo)
G - (X/=) button [bouton « (X/=) », botón
(X/=)]
H - ºC/Fº (units) button [bouton « ºC/Fº »
(Unités), botón ºC/Fº (unidades)]
I - LCD display (afficheur ACL, pantalla
de LCD)
J - Length, area, volume icon [icône «
length » (longueur), « area » (aire) et
« volume » (volume), Ícono de longi-
tud, área y volumen]
K - Sonic icon (icône « sonic » (so-
nique), ícono sónico)
L - Reading (lecture, medición)
M- Infrared icon (icône « infrared » (in-
frarouge), Ícono infrarrojo)
N - Laser icon (icône « laser » (laser),
Ícono láser)
O - Hold icon (icône « hold » (retenue),
ícono mantener)
P - Battery charge icon (icône « battery
charge » (charge des piles), ícono
del cargador de la batería)
