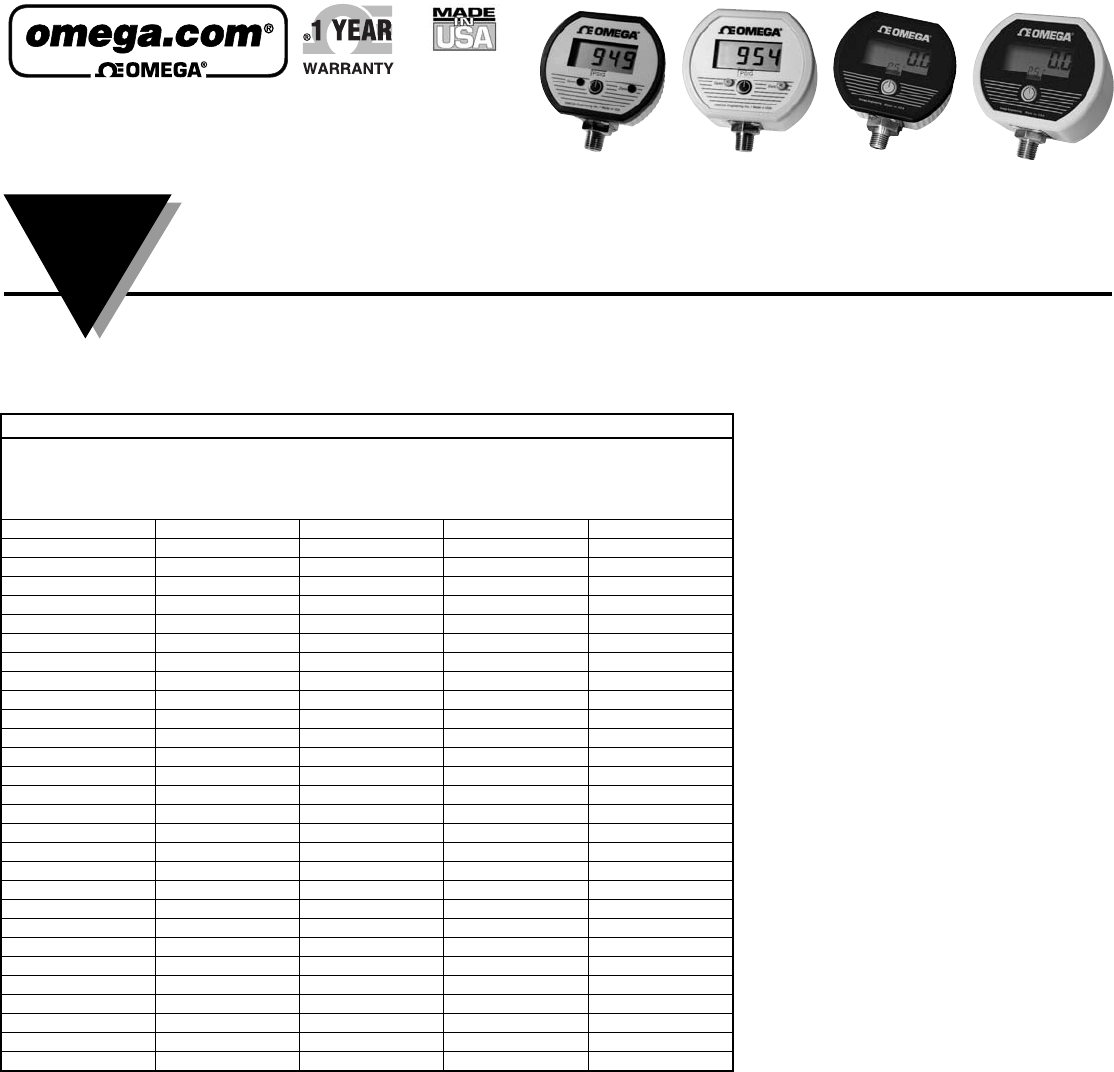

Digital Pressure Gauges
DPG1000B, DPG1001B, DPG1000BBL,
DPG1100B, DPG1100BBL
INSTRUCTION
SHEET
Shop online at: omega.com e-mail: info@omega.com
For latest product manuals: omegamanual.info
Accuracy (linearity, hysteresis, repeatability)
±0.25% of full scale ±1 least significant digit
DPG1001B:
±0.10% of full scale ±1 least
significant digit
Display (update rate, type, size)
3 readings per second nominal display update
Ranges up to 1999:
3
1
/2 digit LCD,
1
/2" digit height
Ranges 2000 and up:
4 digit LCD, 0.4" H digits,
alphanumeric display of units
BBL: Red LED display backlighting
Controls & Functions
Ranges up to 1999
: Front pushbutton turns
gauge on/off and starts shutoff timer.Turns on
backlighting for 1 minute on BBL models.
Ranges 2000 and up:
Front pushbutton turns
gauge on/off, starts shutoff timer. Pressing and
holding front button zeros gauge.The zero
feature is not used on absolute reference gauges.
Calibration
Ranges up to 1999:
Front potentiometers, non-
interactive zero & span, ±10% range
Ranges 2000 and up:
Internal pushbuttons, non-
interactive zero, midpoint, & span, ±10% range.
Calibration information stored in non-volatile
memory.
Shutoff
Last character of model number on rear label
indicates shutoff time. Contact Omega for other
optional shutoff times.
-5: 5 minute auto shutoff (standard)
-NS: No auto shutoff, on/off via front pushbutton
Connection Size
1
/4" NPT male
Sensor Material
All wetted parts are 316 stainless steel
Batteries
2 AA alkaline
Battery Life
1000B, 1001B, 1100B ranges to 1999
Approx.2500 hours
1000B, 1001B, 1100B ranges 2000 and up
Approx.2000 hours
1000BBL, 1100BBL ranges to 1999
Approx.180 hrs (backlight on when gauge is on)
1000BBL, 1100BBL 2000 and up
Approx.150 to 1500 hrs depending on backlight
usage
Low Battery Indication
Low battery symbol on display when batteries
must be replaced
Dimensions (see drawing on next page)
DPG1000
3.5" W x 3.0" H x 2.0" D NEMA 4X housing
Add approx.0.75" to height for pressure fitting
DPG1100
3.38" W x 2.88" H x 1.65" D housing
Add approx.0.75" to height for pressure fitting
Weight (approximate)
Gauge: 9 ounces
Shipping weight:1 pound
Housing Material & Color
DPG1000
Extruded aluminum case, light gray epoxy
powder coated, black ABS/polycarbonate bezel,
front and rear gaskets, polycarbonate label
DPG1100
Light gray ABS/polycarbonate NEMA 4X case,
rear gasket, polycarbonate label
Overpressure
2 times sensor range
3000 psig range & metric equivalents: 5000 psig
5000 psig range & metric equivalents: 7500 psig
Ranges 2000 and up: 112.5% out-of-range
display: i – – – or i –.–.–.– depending on model
Burst Pressure
4 times sensor pressure rating, or 10,000 psi,
whichever is less
Storage Temperature
–40 to 203°F (–40 to 95°C)
Operating Temperature
–4 to 185°F (–20 to 85°C)
Compensated Temperature
32 to 158°F (0 to 70°C)
Temperature Stability
±0.5% span typical, ±1% span max. 0 to 82°C
Ranges and Resolution
Resolution is fixed as indicated in table
Ranges in Bold are standard. Contact Omega Engineering to order other ranges listed below.
abs: Absolute reference (normally reads atmospheric pressure, reads zero at full vacuum)
vac: Vacuum gauge, minus sign not used unless specified
–30.0 inHg/15.0 psig 120.0 inHg 1600 mmHg 35.0 bar 1.000 kg/cm
2
abs
–30.0 inHg/100.0 psig 199.9 inHg abs 760 torr abs 70.0 bar 1.000 kg/cm
2
vac
–30.0 inHg/199.9 psig 199.9 inHg 1600 torr abs 140.0 bar ±1.000 kg/cm
2
3.00 psig 50.0 oz/in2
2100 mmH
2
O
199.9 bar 1.000 kg/cm
2
5.00 psig 80.0 oz/in2
3500 mmH
2
O
350 bar 1.999 kg/cm
2
abs
15.00 psi abs 240 oz/in2 abs
199.9 cmH
2
O
19.99 kPa 1.999 kg/cm
2
15.00 psig vac 240 oz/in2 vac
350 cmH
2
O
35.0 kPa 4.00 kg/cm
2
±15.00 psig ±240 oz/in2
1000 cmH
2
O
100.0 kPa abs 7.00 kg/cm
2
abs
15.00 psig 240 oz/in2
2100 cmH
2
O
100.0 kPa vac 7.00 kg/cm
2
30.0 psi abs 85.0 inH2O 199.9 mbar ±100.0 kPa 14.00 kg/cm
2
30.0 psig 140.0 inH
2O
350 mbar 100.0 kPa 19.99 kg/cm
2
60.0 psig 400 inH
2O abs
1000 mbar abs 199.9 kPa abs 35.0 kg/cm
2
100.0 psi abs 400 inH2O vac 1000 mbar vac 199.9 kPa 70.0 kg/cm
2
100.0 psig ±400 inH
2O
±1000 mbar 400 kPa 140.0 kg/cm
2
199.9 psig 400 inH
2O
1000 mbar 700 kPa abs 199.9 kg/cm
2
300 psig 850 inH2O 2000 mbar abs 700 kPa 350 kg/cm
2
500 psig 7.00 ftH
2O
2000 mbar 1500 kPa 1.000 atm abs
1000 psig 12.00 ftH2O 4000 mbar 1999 kPa ±1.000 atm
1999 psig 35.0 ftH2O 1.000 bar abs 3500 kPa 1.000 atm
3000 psig 70.0 ftH
2O
1.000 bar vac 5000 kPa 4.00 atm
5000 psig 140.0 ftH2O ±1.000 bar 3.50 MPa 7.00 atm
6.00 inHg 230 ftH2O 1.000 bar 7.00 MPa 14.00 atm
10.00 inHg 480 ftH2O 1.999 bar abs 14.00 MPa 19.99 atm
30.0 inHg abs 150.0 mmHg 1.999 bar 19.99 MPa 35.0 atm
30.0 inHg vac 260 mmHg 4.00 bar 35.0 MPa 70.0 atm
±30.0 inHg 760 mmHg abs 7.00 bar abs 1000 g/cm
2
abs 135.0 atm
30.0 inHg 760 mmHg vac 7.00 bar 1000 g/cm
2
199.9 atm
60.0 inHg abs 760 mmHg 14.00 bar 2100 g/cm
2
abs 340 atm
60.0 inHg 1600 mmHg abs 19.99 bar 2100 g/cm
2
DPG1100B,
DPG1100BBL
DPG1000B Battery Powered
DPG1001B Battery Powered, High Accuracy
DPG1000BBL Battery Powered w. Backlighting
DPG1100B Battery Powered, NEMA 4X
DPG1100BBL Battery Powered w. Backlighting, NEMA 4X
M3359/0606
DPG1000B,
DPG1001B,
DPG1000BBL
DPG1000B,
DPG1000BBL
Ranges 2000
and up
DPG1100B,
DPG1100BBL
Ranges 2000
and up
